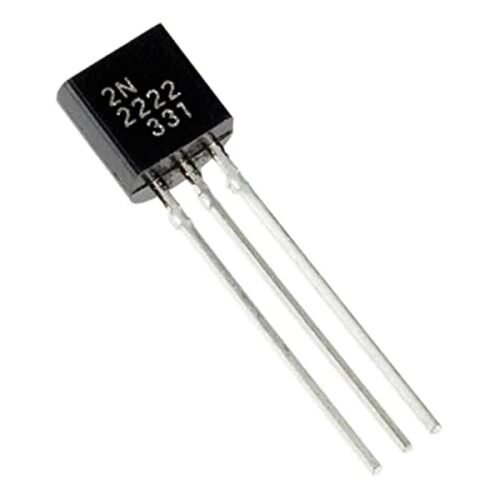

2N2222 Transistor NPN General-Purpose

2N2222 Transistor NPN General-Purpose The 2N2222 transistor operates as a versatile NPN bipolar junction transistor designed for low-to-moderate power amplification and switching. Engineers choose this transistor for its reliable operation in analog and digital circuits. It handles currents up to 800 mA, supports collector-emitter voltages up to 40 V, and switches rapidly, making it ideal for control systems, signal processing, and low-power applications.When you forward bias the base-emitter junction, the transistor conducts from collector to emitter. When you remove base current, it turns off and blocks collector current. This behavior makes it well-suited for interfacing with logic circuits, relays, motors, LEDs, and other loads.Most manufacturers offer the 2N2222A variant in a TO-18 metal can package, which provides better thermal performance than the common plastic-cased PN2222. Pin Configuration (TO-18 Package)PinNameDescription1EmitterCurrent flows out2BaseControls conduction state3CollectorCurrent flows inNote: In TO-92 (plastic) versions like PN2222, the pin order may differ.Key FeaturesProvides fast switching performanceSupports up to 800 mA collector currentHandles 40 V collector-emitter voltageOffers current gain (hFE) of 100–300Comes in metal (TO-18) or plastic (TO-92) packagesWorks well in analog and digital logic systemsApplicationsSwitch low-power relays, solenoids, or motors.Drive LEDs or small lamps from logic outputs.Amplify analog signals in audio or sensor circuits.Interface between microcontrollers and higher current loads.Generate pulse-width modulated control signals.Build basic oscillator or timer circuits.Buffer digital outputs to reduce load.Replace general-purpose NPN transistors like BC547 in prototyping.Construct discrete logic gates or bistable circuits.Use in educational labs for transistor behavior analysis.Specifications TableParameterValueTransistor TypeNPNMax Collector Current800 mAMax Collector-Emitter Voltage40 VMax Collector-Base Voltage75 VMax Emitter-Base Voltage6 VDC Current Gain (hFE)100–300Max Power Dissipation500 mW (TO-18)Transition Frequency (fT)250 MHzSaturation Voltage (VCEsat)~0.3 V         ‘Package TypeTO-18, TO-92Operating Temperature-55 to 150 °C
