4013 IC Dual D-Type Flip-Flop CMOS

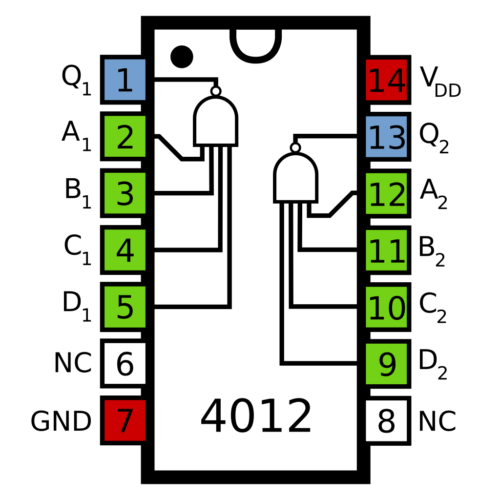

4013 IC Dual D-Type Flip-Flop CMOSThe CD4013BE integrates two D-type flip-flops in a single 14-pin DIP package, providing precise and reliable edge-triggered logic control for digital systems. Each flip-flop includes independent Data (D), Clock (CLK), Set (S), Reset (R), and Q/Q̅ outputs, enabling you to build synchronized latching operations with minimal external components.You can use this IC to store logic states, divide frequencies, build binary counters, and create toggling circuits in both simple and complex systems. The CMOS architecture ensures ultra-low power consumption and broad compatibility with TTL and CMOS logic families.Key FeaturesDual D-type flip-flops in one ICEdge-triggered with Set and Reset inputsIndividual Clock, D, Set, Reset, Q, and Q̅ for each flip-flopOperates from 3V to 15VHigh noise immunity and low power consumptionTTL and CMOS compatible logic levelsDIP-14 through-hole packageOperating temperature: -55°C to 125°CPin Configuration (DIP-14)PinLabelDescription1Q1Output of flip-flop 12Q̅1Inverted output of flip-flop 13CLK1Clock input for flip-flop 14R1Reset input for flip-flop 15D1Data input for flip-flop 16S1Set input for flip-flop 17GNDGround8S2Set input for flip-flop 29D2Data input for flip-flop 210R2Reset input for flip-flop 211CLK2Clock input for flip-flop 212Q̅2Inverted output of flip-flop 213Q2Output of flip-flop 214VDDPower supply ( V)Product SpecificationsParameterValueIC TypeDual D-Type Flip-FlopPart NumberCD4013BELogic FamilyCMOSPackage TypeDIP-14           ‘Supply Voltage3V to 15VMax Clock Frequency~5 MHz (at 5V)Logic CompatibilityTTL and CMOSOutput Current±1.0 mAOperating Temp Range-55°C to 125°CTypical ApplicationsBinary countersToggle switchesFrequency dividersLatch and memory circuitsTiming and pulse generationEdge detection circuitsDebouncing mechanical switches
